Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: Fiber Laser
  • Applicable Material: Metal
  • Cutting Thickness: 0-8mm
  • Cutting Area: 1300*2500mm
  • Cutting Speed: 6m/min
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: Laser CutV3.5
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: FLDJ-1325 fiber 500W metal laser ctting machine
  • Certification: CE, ISO, FDA
  • After-sales Service Provided: Engineers available to service machinery overseas
  • FLDJ-1325: laser fiber machine for sales
  • Working area: 1300*2500mm
  • Cutting thickness: 0-8mm
  • Laser power: 500w fiber
  • Guide rail: PMI linear square guide rail from Taiwan
  • Drive system: YASKAWA servo motor and driver
  • Transmission: Taiwan TBI Ball Screws
  • Laser wave length: 1060nm
  • Total weight: 2000kg
  • Warranty: 12 Months

Packaging & Delivery

Packaging Details: standard plywood package
Delivery Detail: 7 to 10 wroking days after we receive your deposit



        PHILICAM metal cutting machines laser fiber for sales



Please see our video online of  fiber metal cutting :

https://youtu.be/wr6F4YDdttU   (fiber perfect cutting)

https://youtu.be/8ywpTdkdKbU    (fiber good cutting metal word )



Fetures of laser fiber for sales

1. Double ball screw close-loop system and imported open-type CNC system, ensure high accuracy and high working efficiency during high speed cutting.

2. fiber laser cutting machine equipped with fiber laser 500W, 1000W, 2000W, 3000W (optional). Low operating and maintenance costs. Achieve long-term return on
investment and revenue maximization.

3. Aiming at high speed cutting, strengthened welded machine body after 2 times of aging process, ensuring long-term accuracy and stability of performance.

4. Dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of metals. Easy operation and low cost.

5. Automatic nesting software (including material management and optimized processing technology) and providing with database of process parameters for easy operation and simple management.

6. Optimized optical lens, specially designed nozzle and sensor technology realize more stable and smooth cutting.



Technical parameter of  laser fiber  for sales



ModelFLD1325-Fiber-500WFLD1530-Fiber-500WFLD2040-Fiber-500W
Working Area2500X1300mm3000X1500mm4000x2000mm
Laser TypeRaycus Fiber laser generator
Laser Power500W
Laser Wavelength1060 nm
Beam Quality<1.2mrad
Positioning Accuracy≤ ±0.03mm/m
Re-positioning Accuracy≤±0.02mm/m
Max Cutting Speed200mm/s(depending on material and thickness)
Power Supply Rated Voltage3-phase 380V/50Hz
X-axis Stroke2500mm3000mm4000mm
Y-axis Stroke1300mm1500mm2000mm
Z-axis Stroke120mm
Working TableRack working platform
Control SystemCypcut CNC control system
Location SystemRed dot indicator
Water Cooling SystemConstant temperature water chiller
Machine Weight1800-2000kg
Machine Dimension3500x1800x1600mm4300x2500x1600mm5000X2900X1600mm
RemarkAutomatic exchange worktable, cover(option)



Optional of  laser fiber for sales
1. 2000mmX4000mm, 1500*3000mm working table.
2. Enclosure design conforms to CE standard for reliable and safe processing.
3.Pallet changer is convenient for material uploading and unloading and further improving working efficiency.

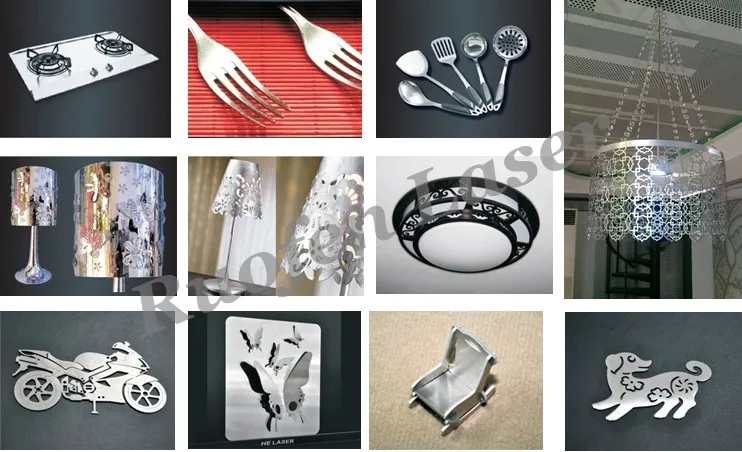

laser fiber  application:



Ideal for cutting sheet metal such as Carbon steel, Silicon steel, Stainless steel, Aluminum alloy, Titanium alloy, copper, rare metal, etc.

Widely used in sheet metal processing, metal ware, kitchen appliance, household appliance, medical instrument, precision equipment, electric control box, auto parts, glasses, poster, craft, lighting industry.







Our service:



 After sales service

-12 months for the machine

-technical services to the door (professional engineers to offer machine installation

commissioning and maintenance)

-replace all parts for free during the warranty period(no human damage)

-24hr technology online support (skype,whatsapp,qq)

-24hr service email ID: service-at-ruofencnc.com





Wendy
Skype:rofinlaser003
Whatsapp:+86-13668829380
QQ: 2713653893
