Quick Details

  • Application: Laser Cutting
  • Condition: New
  • Laser Type: Fiber Laser
  • Applicable Material: Metal
  • Cutting Thickness: 9mm
  • Cutting Area: 1300*2500mm
  • Cutting Speed: 0-300mm/s
  • CNC or Not: Yes
  • Cooling Mode: Water Cooling
  • Control Software: RUIDA rdc6333f
  • Graphic Format Supported: AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: PHILICAM
  • Model Number: FLDJ 1325 500w
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Working area: 1300*2500mm
  • Laser medium: fiber
  • Laser power: 500w
  • Focus method: Following and automatic adjust focus
  • Guide rail: Hiwin from Taiwan
  • Transmission method: Ball screw from Germany
  • Drive system: Servo motor and drives from Japan
  • Cooling system: 7HP water chiller
  • name: 500w fiber laser cutting machine
  • Control system: RUIDA rdc6333f

Packaging & Delivery

Packaging Details: standard wooden case
Delivery Detail: 15-30 working days before shipping

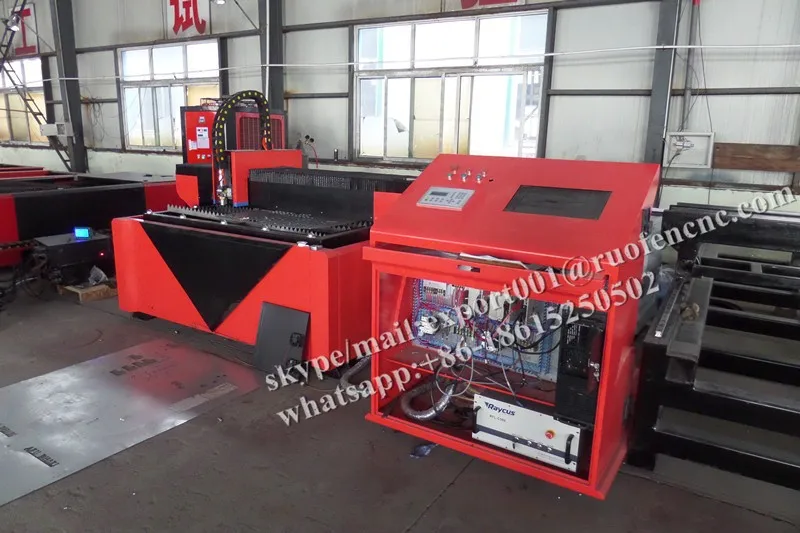

Philicam CNC Sheet Metal Fiber Laser Cutting machine 500W
Machine parts of 500w fiber laser cutting machine

# Working area: 1300*2500mm
# Laser power Fiber 500w RAYCUS brand (WUHAN RAYCUS FIBER LASER TECHNOLOGIES CO., LTD) or
# control system: RUIDA rdc6333f
# cooling system : water chiller
# HIWIN linear square rail from Taiwan
# Japan yaskawa servo motors and drivers
# imported Lens and mirrors
# with follow-up system special laser head, auto focus
# transmation : X axis , Y axis ,Z axis all TBI Ball screw from Taiwan
# imported Lenses and mirror

Advantages of 500w fiber laser cutting machine

1. Low operation cost :power consumption is only 70-80% of co2 laser

                                    2. High cutting speed :2-3times faster than yag of co2 laser

3. High cutting accuracy :finest laser beam up to 0.01mm

                                      4. Low maintenance :almost totally free of maintenance

 Machine parts pictures of 500w fiber laser cutting machine



Saw -tooth type working table,stable, heavy holding

Raycus fiber laser source

A wide selectivity of operating wavelengths ,Ultra-low amplitude noise ,high stability and ultra-long lifetime, feature redesigned control electronics with extended functionality

Japan Yaskawa servo motor and driver

Extreme precise positioning , make moving positioning mechanism operate smoothly, reliably and free of maintenance



Advanced laser optical system



Ensure excellent laser beam quality , can strongly improve the laser power and laser beam quality

Auto focus laser head system

Keep the same distance between the metal sheet and laser head , realize the accuracy of cutting effect

DSP control panel

easy to operate, enable remote control

Technicial Parameters of 500w fiber laser cutting machine



NO.

Model

FLD1325

1

Working area

1300x2500mm

2

Laser medium

Fiber

3

Laser power

500w

4

Laser wave length

1060nm

5

Min line width

≤0.12mm

6

Positon accuracy

0.03mm/m

7

Repetition accuracy

0.02mm/m

8

Focus method

Following and automatic adjust focus

9

Guide rail

PMI from Taiwan

10

Drive system

Japan Servo motor and drivers

11

Cooling system

Water cooling

12

Control system

RUIDA rdc6333f

13

Working environment

Temperature: 0-45℃,

14

Power supply

380v/50Hz

15

Total weight

2000kg

16

Packaging size

3600X2100X1600mm



Machine Samples of 500w fiber laser cutting machine





FAQ of  500w fiber laser cutting machine

Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

 Factory show of 500w fiber laser cutting machine

 Why choose Philicam ?

1. Feel Confident when buy from a CNC company that has expert staffs with over 10 years of CNC building experience.
2. Get the support that you deserve from our confident well trained staff members.
3. PHILICAM prides itself in having the patience and the ability to provide knowledge and service.

We have professional after service:
1. One year quality guaranty.  Lifetime maintenance free of charge.
 2. Free training course at our plant.
 3. We will provide the consumable parts at an agency price when you need replacement.
 4. 24 hours on line service each day, free technical support.
 5. Our staff can be sent to your company to install or adjust if necessary.
